INTERIOR

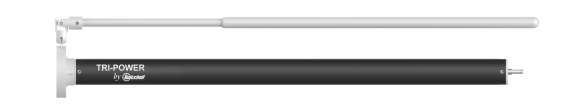

0.8 Nm Motor
H18-1NM-WAND
The 0.8 Nm Tri-Power motor is designed for interior shade applications. Choose the motor with the shade size, weight and tube profile in mind.
Use the rechargeable battery for an installation without permanent motor wiring, or plan a compatible Smart Power installation. Confirm the crown, drive, brackets and power components for your application before ordering.
Account pricing and approved order quantities are confirmed in the partner workspace. Orders are submitted for final quotation; checkout does not collect payment.
Features
- Rechargeable battery or compatible Smart Power operation
- USB-C battery charging
- Electronic limit settings
- Adjustable motor speed
- Pull-wand operation
Specifications
- Torque
- 0.8 Nm
- Control
- Wand
- Adjustable speed
- 20 / 25 / 30 RPM
- Battery capacity
- 2600 mAh
- Listed tube size
- 25 mm
- IP rating
- IP20
- Maximum run time
- 6 minutes
Documents & downloads
Application notes
This is the wand-control model. RF remotes and keypads are not its control method.
Charging voltage and the installed Smart Power supply are different requirements. Follow the exact model’s wiring instructions; the USB-C connector alone does not establish the supply arrangement.
